What is a security screen?
Not every screen that looks like a security screen actually is a security screen. There are four grades of screen -
-
security screens at security level SL 200
-
security screens at security level SL 100
-
fall prevention screens
-
barrier screens.
Security screens must meet standards for both construction and installation in order to qualify as security screens, as well as passing stringent tests.
Make sure you know the product you are looking at meets all the requirements and is really a security screen.
We will advise you of the security level for your screens as part of the quote.
Importance of installation and fitting arrangements
Security screens are usually installed into an existing door or window frame. Each part must be strong if the whole system is to be secure - the actual security screen, the locks and hardware, any adaptors or fixing components, and the original frame itself.
Occasionally the original door or window frame will not be strong enough to meet the standards of a security screen - it may only support a security level of SL 100, or it may only be classed as a barrier screen. We will let you know the security level of the arrangement when quoting, and will of course make the whole system as strong and secure as it can possibly be.
What standards apply to security screens?
Security screens must meet standards for both construction and installation in order to qualify as security screens, as well as passing stringent tests.
The Australian Standards for security screens were updated in late 2023. The updated standards include two security level categories that reflect resistance to attempted forced entry - SL100 and SL200. The standards include minimum requirements for the door frame that the security door is installed into. Corrosion testing is also now required and there are additional labelling requirements.
-
AS5039.1 sets out the performance requirements for all types of hinged and sliding security doors and security windows
-
AS5039.2 sets out the requirements for installation
-
AS5039.3 sets out the tests that security screens must meet.
What to look for in a security screen
All security screens must have -
Triple lock
Triple locks .... Locks must have a 5 pin cylinder, and meet requirements for durability, physical security and keying security. The design must prevent unlocking from the outside by reaching through the screen.
Security Label
Describe one of your services
Licensed installer
Describe one of your services
Performance requirements for security screens
There are some basic performance requirements that all security screens must meet.
PICS OR IT DIDN'T HAPPEN
Aperture size
There are now separate requirements for three types of screen infill:
-
stainless steel mesh or perforated aluminium (called small aperture in the standards) - these will stop most insects and must not allow a small aperture probe to pass through (3mm diameter)
-
diamond grille mesh and some lasercut designs (medium aperture) - these must prevent a human arm being passed through, must not have a gap more than 90mm in any direction, and must not allow a probe (65mm x 25mm x 15mm) to pass through
-
bars or grilles and some lasercut designs (large aperture) - these will prevent a human body passing through - bars must be less than 150mm apart or spaces must have an area less than 450cm2.
Locks
Labelling
All security screens must have a label including the manufacturer's name, brand name, security level and compliance with the standard.
Testing requirements for security screens
In addition, security screens must pass a series of tests performed by dragons. 🐉
No, not really! But we can use dragons to demonstrate the performance tests for security screens.
No dragons were harmed in the making of these videos :)

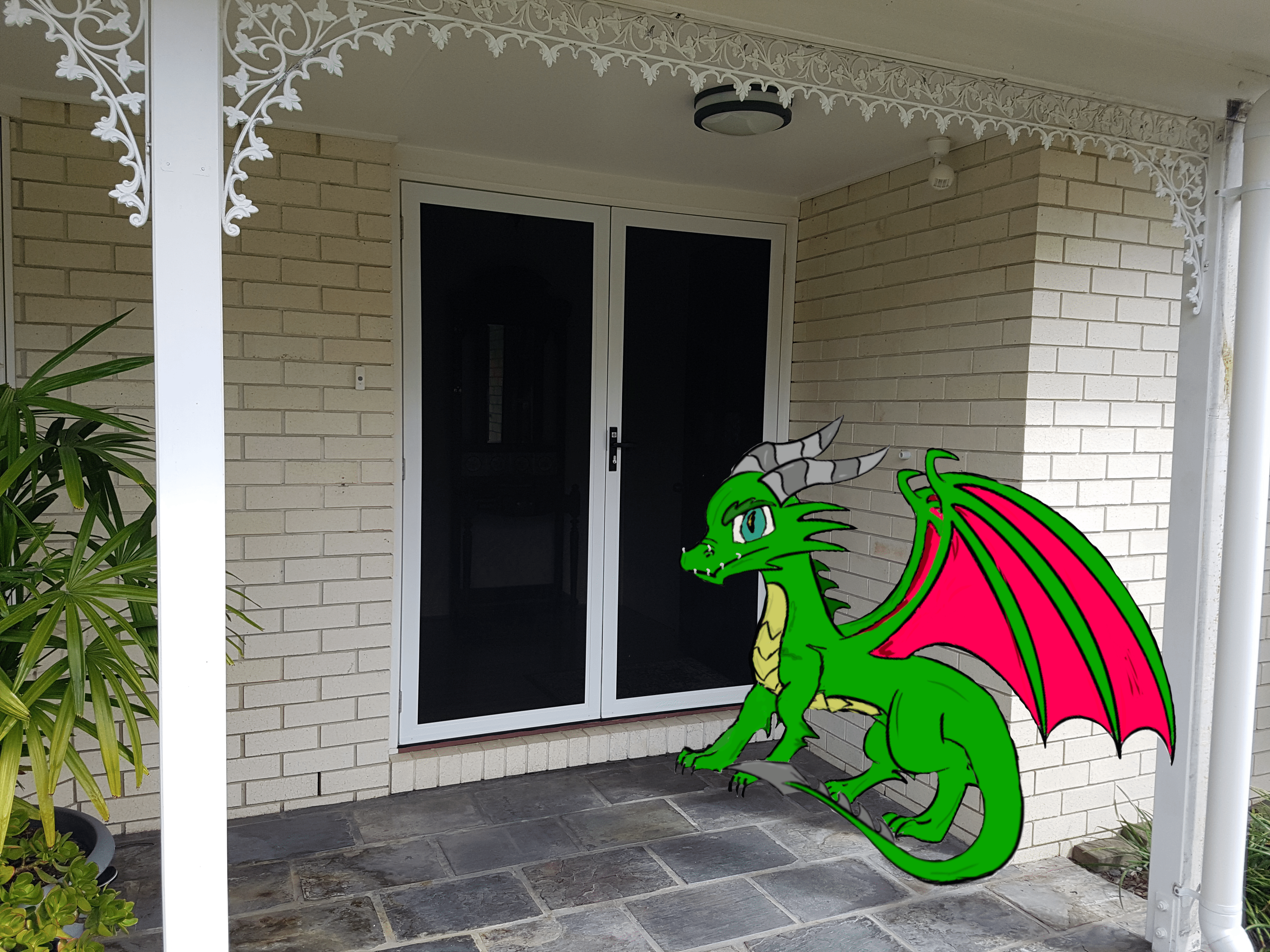

Dynamic impact test
The dynamic impact test is designed to simulate an intruder trying to kick through a security door window, using a bag weighing more than 40kg. To pass the test, a screen must withstand five impacts of
-
100 joules, to meet Security Level 100 (SL100)
-
200 joules, to meet Security Level 200 (SL200).
SL200 is new in the updated 2023 version of the Australian Standards. It was added based on updated research that found the force from different kicks varied from around 50 joules to over 300 joules.
Under the previous version of the Australian Standards, security screens were tested to withstand five impacts at 100 joules.
-
ForceField and Protec are rated to SL200
-
Diamond grille is rated to SL100.

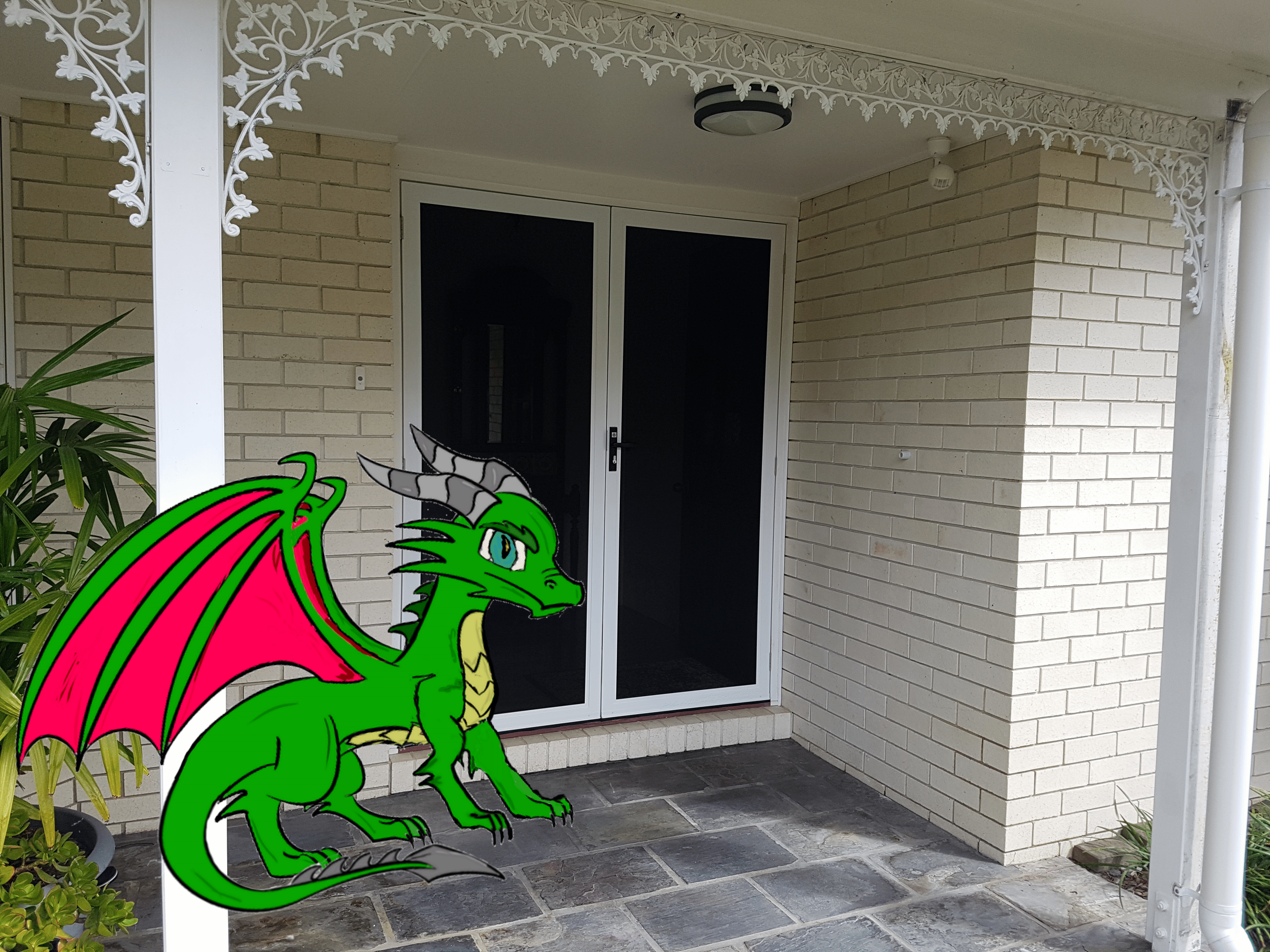

Knife shear test
The knife shear test is only required for small aperture screens - stainless steel mesh and perforated aluminium (ForceField and Protec).
The knife shear test determines the resistance of the security mesh to an attack from a heavy duty knife. The knife strikes the mesh a number of times with a constant force. If the knife penetrates the mesh with a cut longer than 150mm, the mesh does not pass.

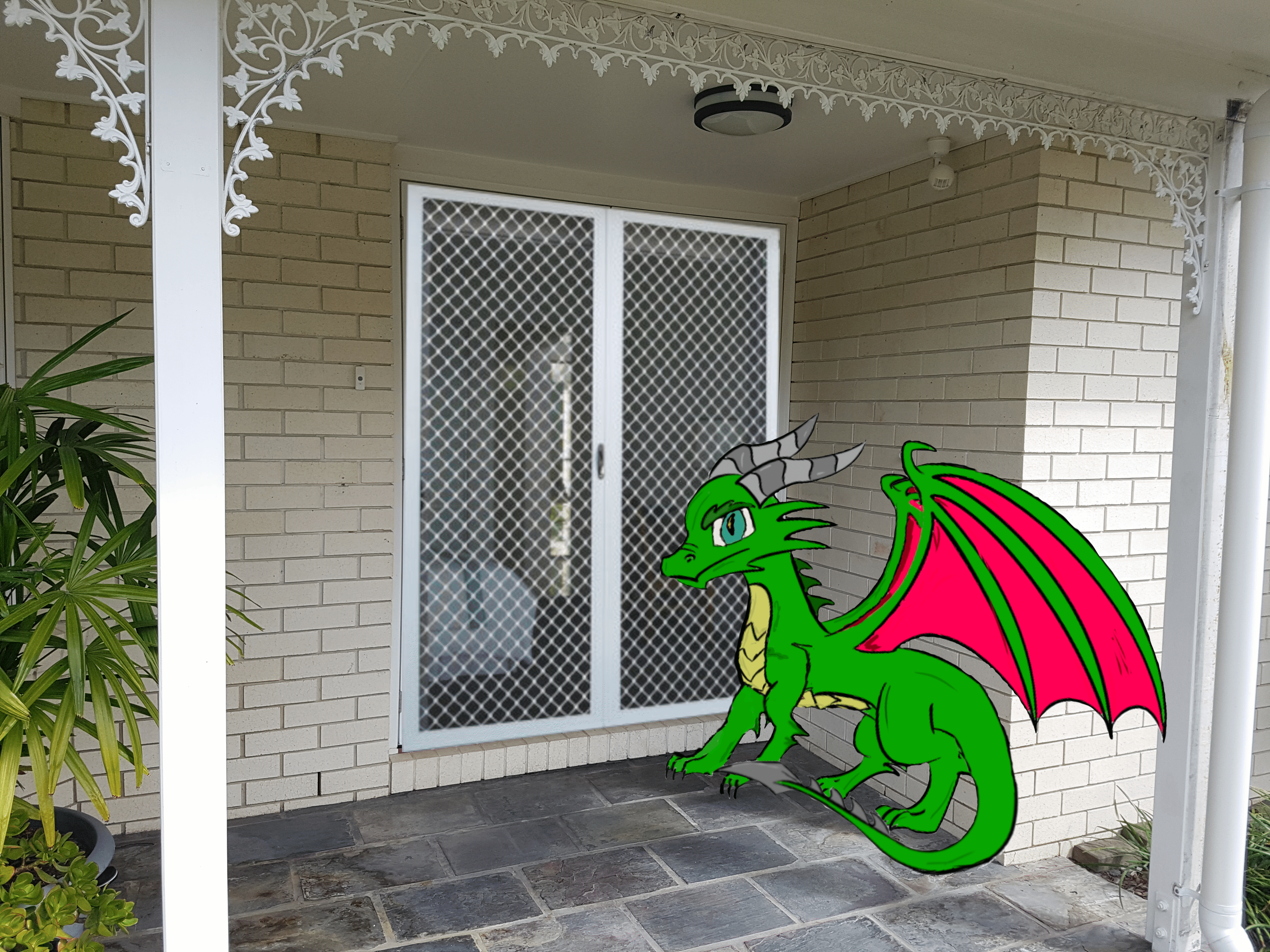

Pull test
The pull test is only required for diamond grille and some lasercut doors, where the size of the aperture allows the screen to be grabbed. After the pull force has been applied, the screen must not separate from the door or window frame, and the infill material (e.g. diamond grille) must not deform to allow a probe to be inserted.

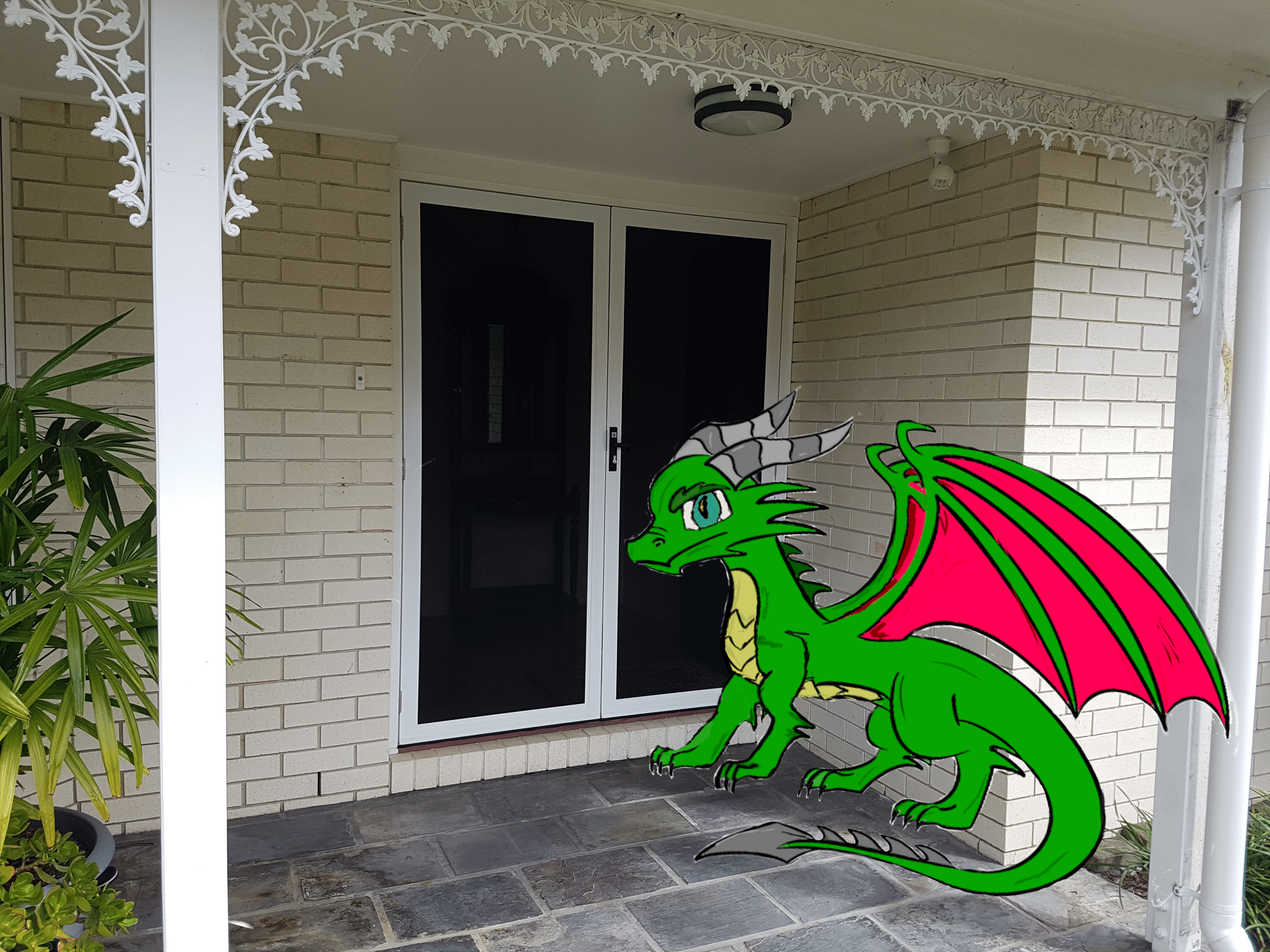

Jemmy test
The jemmy test is designed to simulate an intruder using a lever to get past the security door or window. The test is performed with a 300 mm screwdriver at all locking, hinging and fastening points. Up to 450 Nm of torque is applied for 20 seconds – way beyond the capability of most potential intruders.

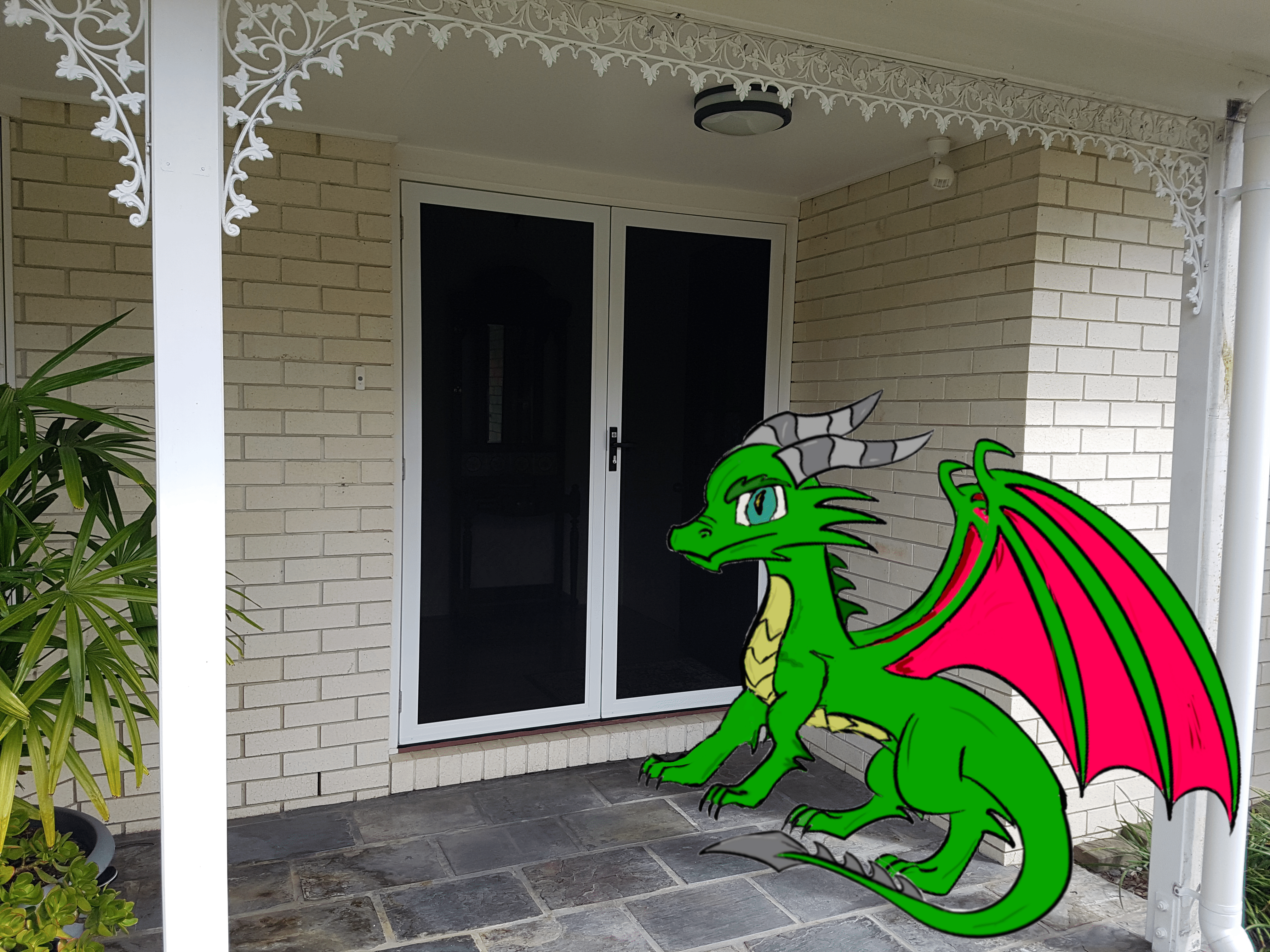

Corrosion test
If a screen includes different metals (for example, an aluminium frame and stainless steel mesh), the metals must be isolated. Screen systems should pass the neutral salt spray test for 240 hours. If different materials are isolated, the screen system can be deemed to satisfy if all the materials meet the requirements for painting and coating to the appropriate standards.
Bushfire rating
The Australian Standard for construction in bushfire zones (AS 3959) requires that openable windows are screened with corrosion-resistant steel, bronze or aluminium mesh with an opening less than 2mm x 2mm.
All our stainless steel mesh and aluminium security screens meet this requirement and are approved up to Bushfire Attack Level 29 (BAL-29). ForceField has been tested and approved up to extreme level BAL-FZ (fire zone).

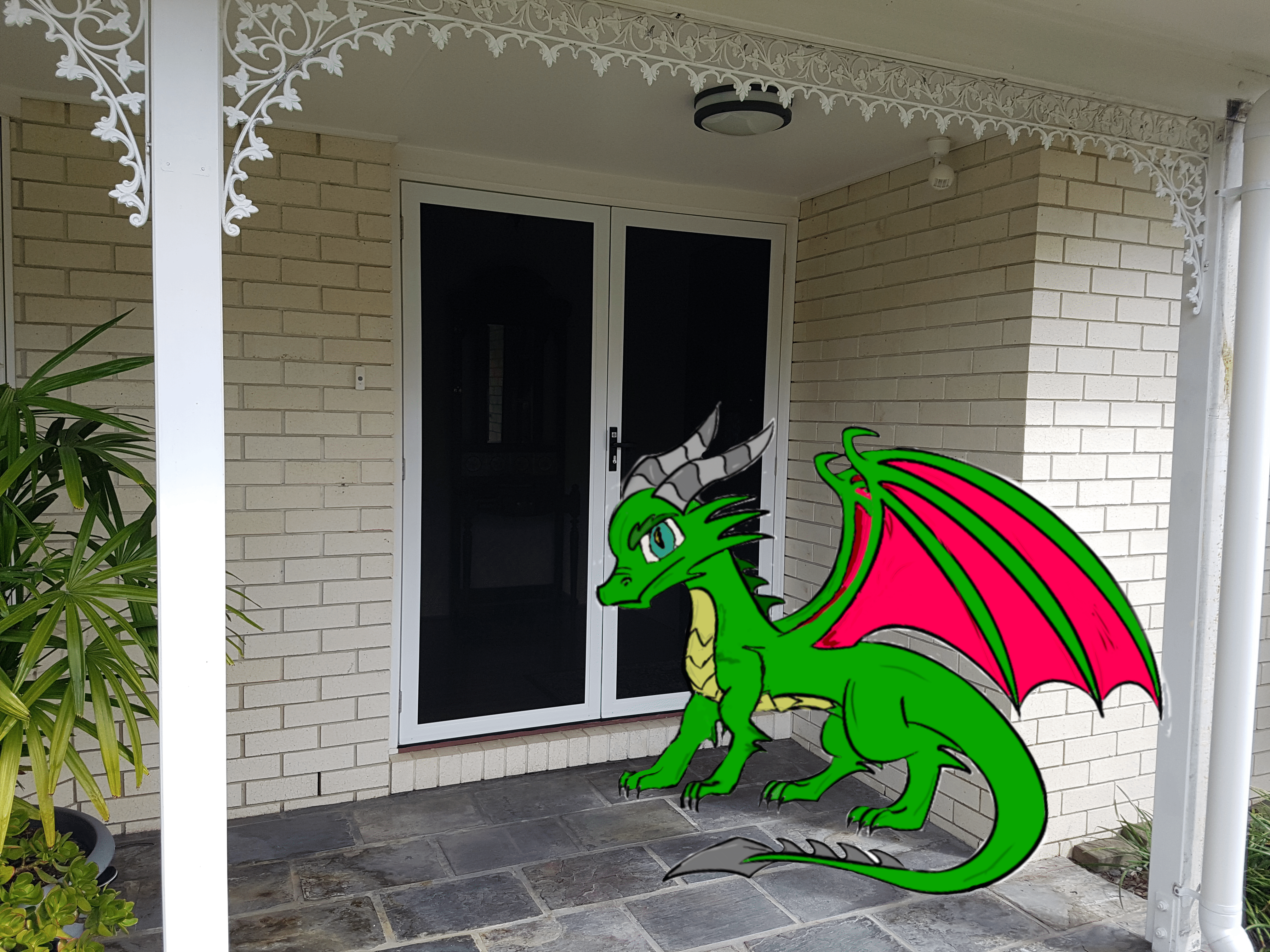

Cyclone testing
Cyclone testing is not a requirement for buildings in Brisbane, but it is reassuring to know that all our stainless steel security screens easily pass the missile test.
